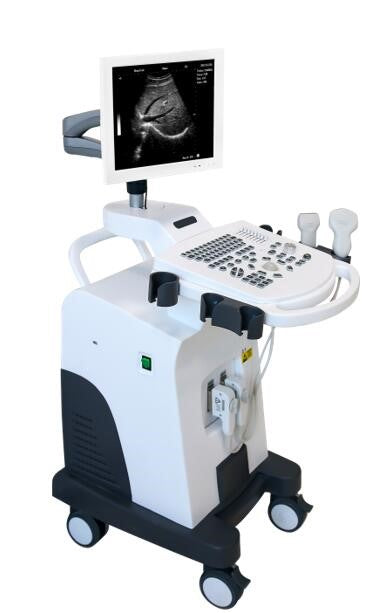

Digital Ultrasound Scanner B/W

Digital Ultrasound Scanner B/W

Regular price
Sale price
Regular price
Sold out
Unit price



Mainly used in abdomen, Urology, obstetrics and Gynecology, blood vessel, etc

High definition and multifunctional trolley type fully digital ultrasonic diagnostic apparatus

The image is clear, and the operation is convenient

15-inch LCD

Powerful image post-processing functions

DRF real-time dynamic reception of focus by point by point

RDA real-time dynamic aperture imaging

RDF real-time dynamic filtering

DFS numerical control dynamic frequency scanning

Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry

Intelligent menu, human-computer dialogue is easy and quick

External USB storage, image uploading more convenient

Large volume movie playback, image automatic circulation demonstration

Abundant measurement functions: distance, circumference, area, volume

Obstetric table, heart software package, etc

Scanning mode convex matrix / linear array / micro convex

Probe interface 2, with automatic identification function to support multiple probes

Display mode B, B+B, 4B, B+M, M

Electron focusing four segment electrons focusing

Postural markers 97 species

Probe 3.5MHz Convex Probe: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz, 5.0MHz Micro Convex probe: 4.0MHz, 4.5MHz, 5.0MHz, 6.5MHz, 7.0MHz, 6.5MHz Trans vaginal probe: 5.0MHz, 5.5MHz, 6.5MHz, 7.5MHz, 8.5MHz, 7.5MHz Linear probe & Rectal Probe: 5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz

Image rotation 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees

Measurement's distance, circumference, area, volume, heart rate, gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display.

Maximum display depth 3.5MHz: 126-307mm 6.5MHz: 189mm 7.5MHz: 40-166mm 5.0MHz: 205mm

Resolution the side is less than 2mm, and the axis is less than 1mm

Display rate 6 display modes; lesion diagnosis is more accurate. In the case of x 1.5 and X 1.8, the display of depth can be raised

Interface RS-232 interface, VGA interface, VIDEO interface, USB interface.

Medical device quality management system (ISO13485) certification
