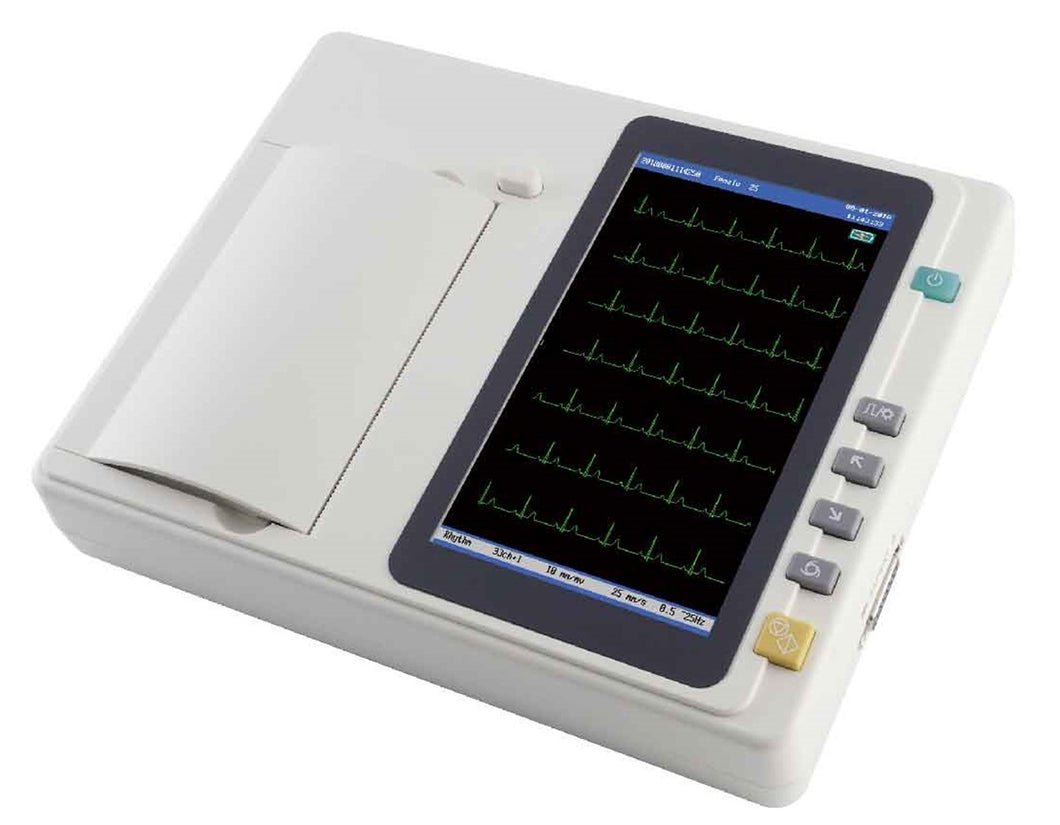

ECG Machine ECG-6

ECG Machine ECG-6

Regular price
Sale price
Regular price
Sold out
Unit price



7-inch-high resolution color touch screen

12-lead simultaneous acquisition and display

ECG Automatic measurement and interpretation function

Support USB flash disk and micro-SD card to extend memory

Software upgrade via USB/SD card

Built-in rechargeable Li-ion battery

Measurement Range ±5mVpp

Input Impedance ≥50MΩ

Input circuit current <0.05µA

CMRR >100dB

Patient leak current <10µA (220V-240V)

Frequency Response 0.05Hz~150Hz (-3dB)

Sensitivity 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%)

Anti-baseline Drift Automatic

Noise level <15µVp-p

Paper speed 12.5 mm/s, 25 mm/s, 50 mm/s

Dimension 54*33*75cm, total gross weight 22 KG

Power Supply AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery
